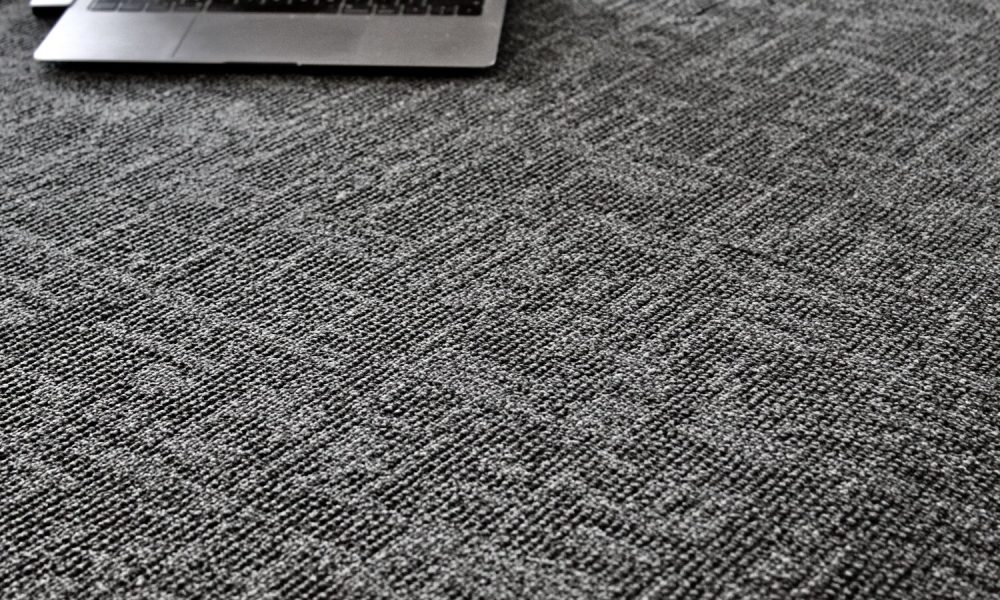

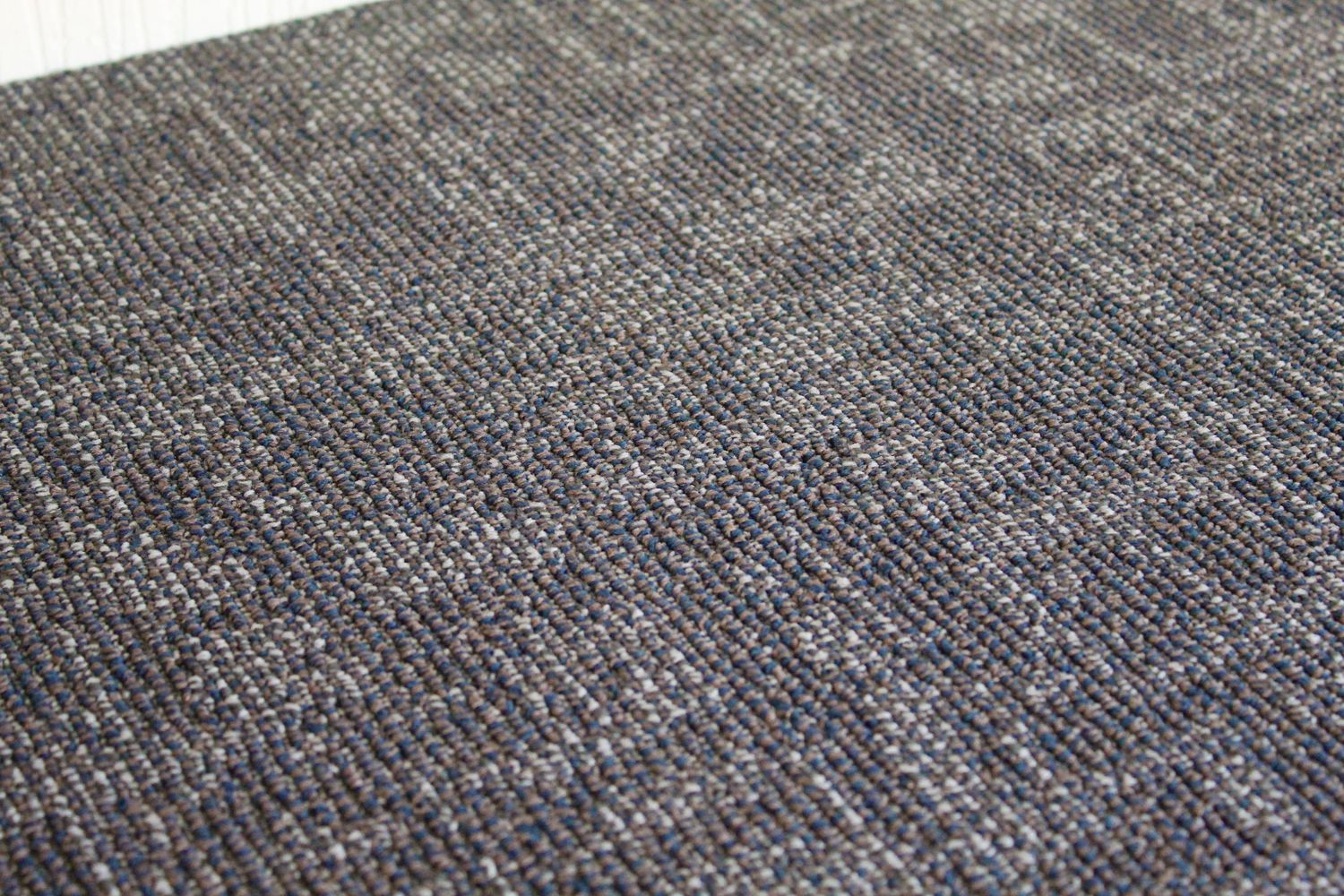

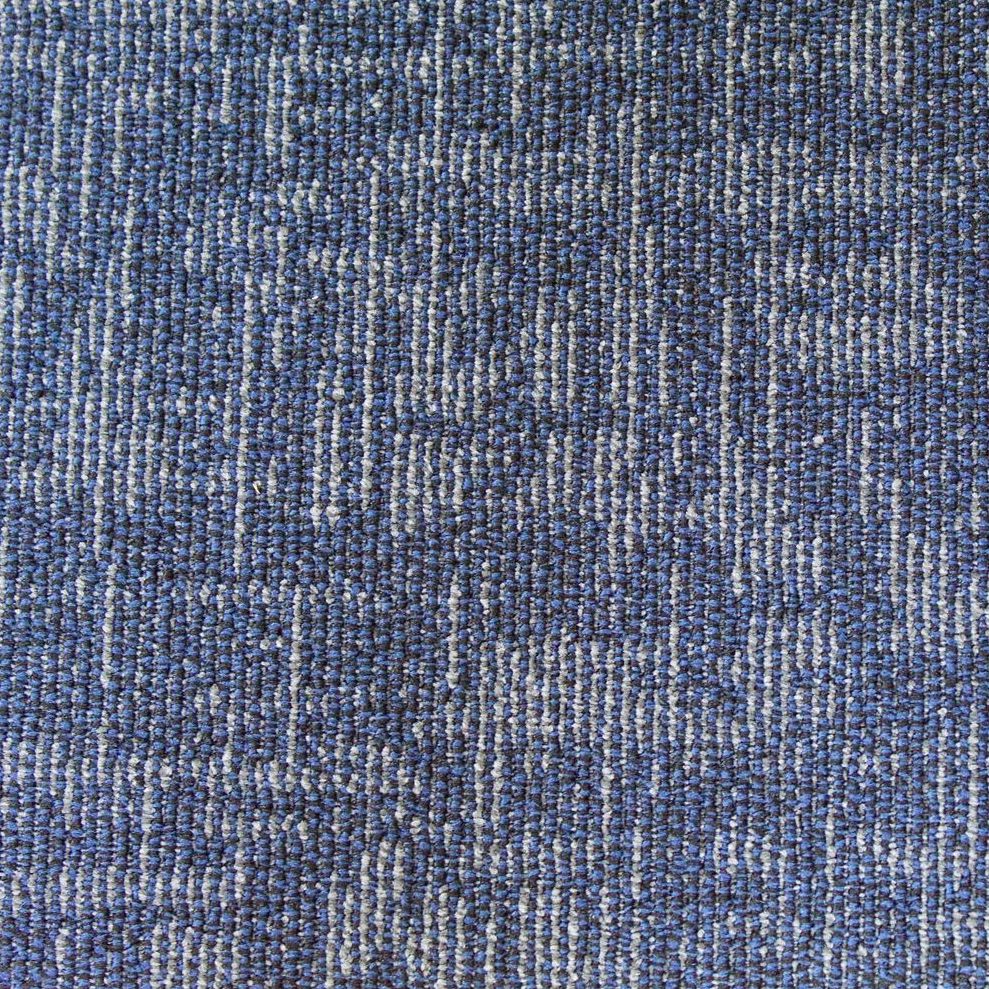

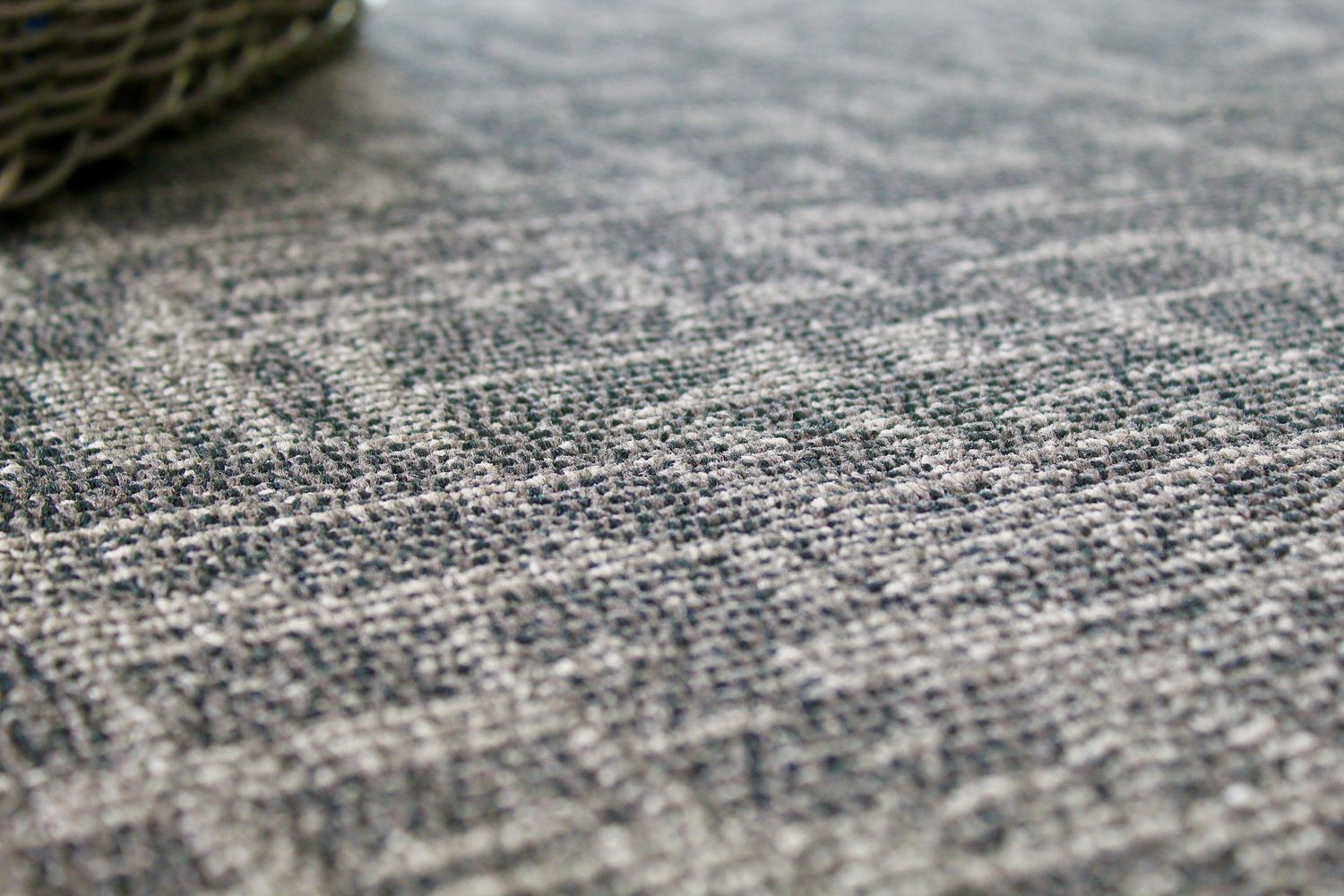

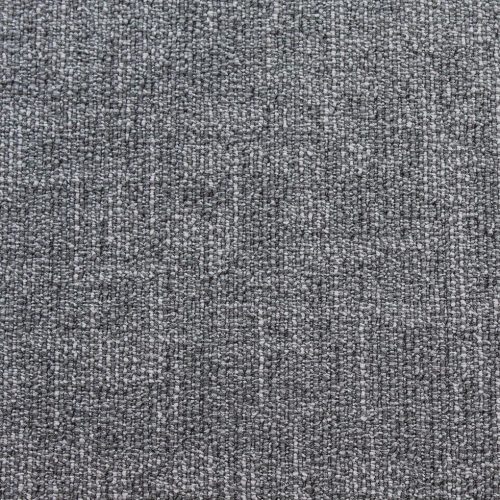

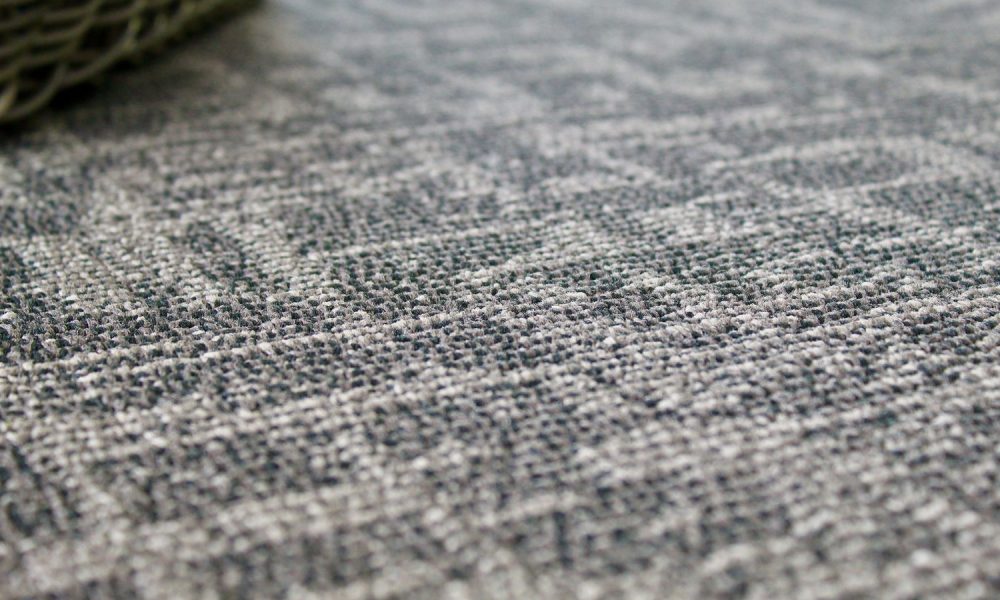

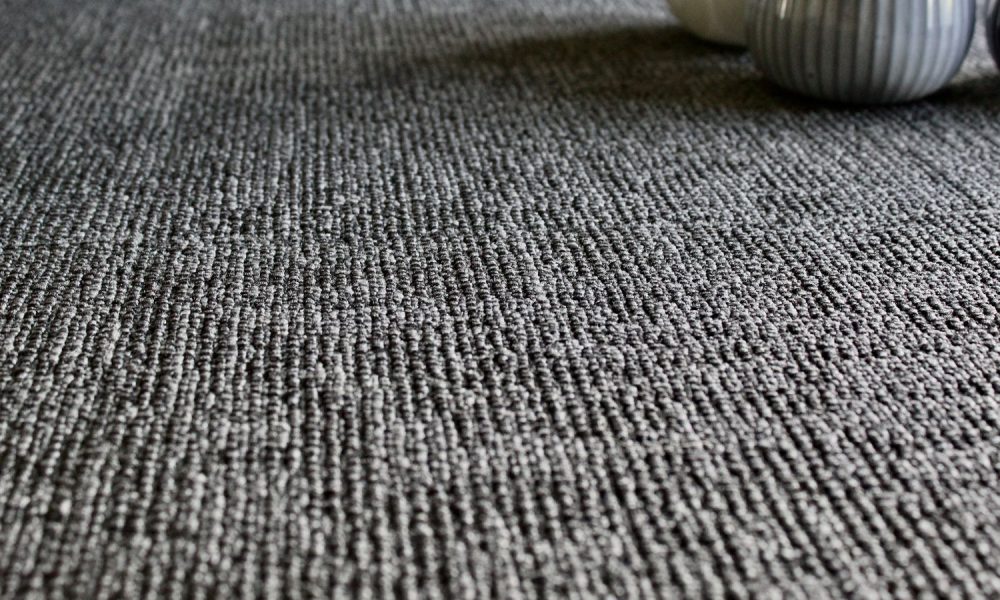

Made from a 575-gram solution dyed Nylon 6 polyamide yarn, Mesh is a commercial carpet tile with a class 33 commercial contract warranty available in 8 individual colourways and available in either a 50cm x 50cm tile or a 25cm x 100cm plank (special order, minimums apply).
You also have the option of a bitumen backing made from 70% recycled content or a 500 gram environmentally friendly felt.
The acoustics of this collect are superb: On the bitumen backing at 25dB and with the acoustic option this can then be increased to 31dB.
For a great commercial grade bitumen backed or acoustic backed carpet tile in the sizes of 50cm x 50cm or 25cm x 100cm plank you certainly won’t need to look any further.
- Perfect for all commercial areas

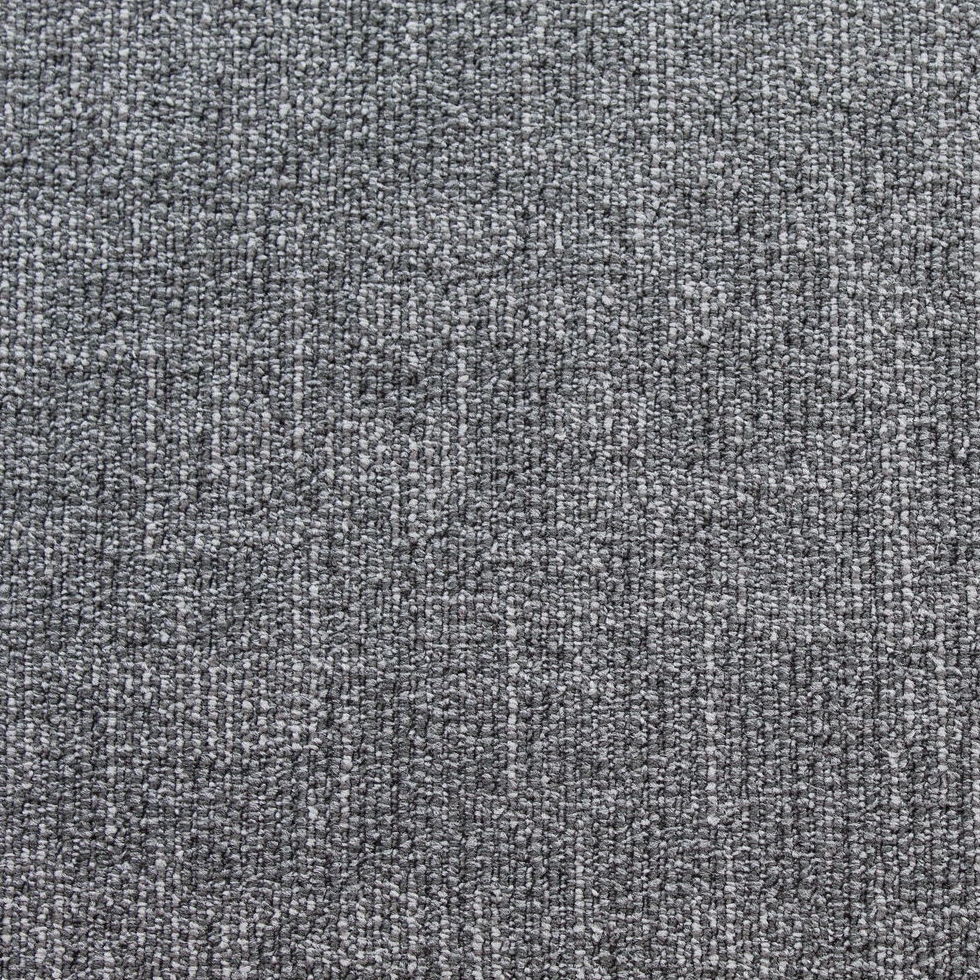

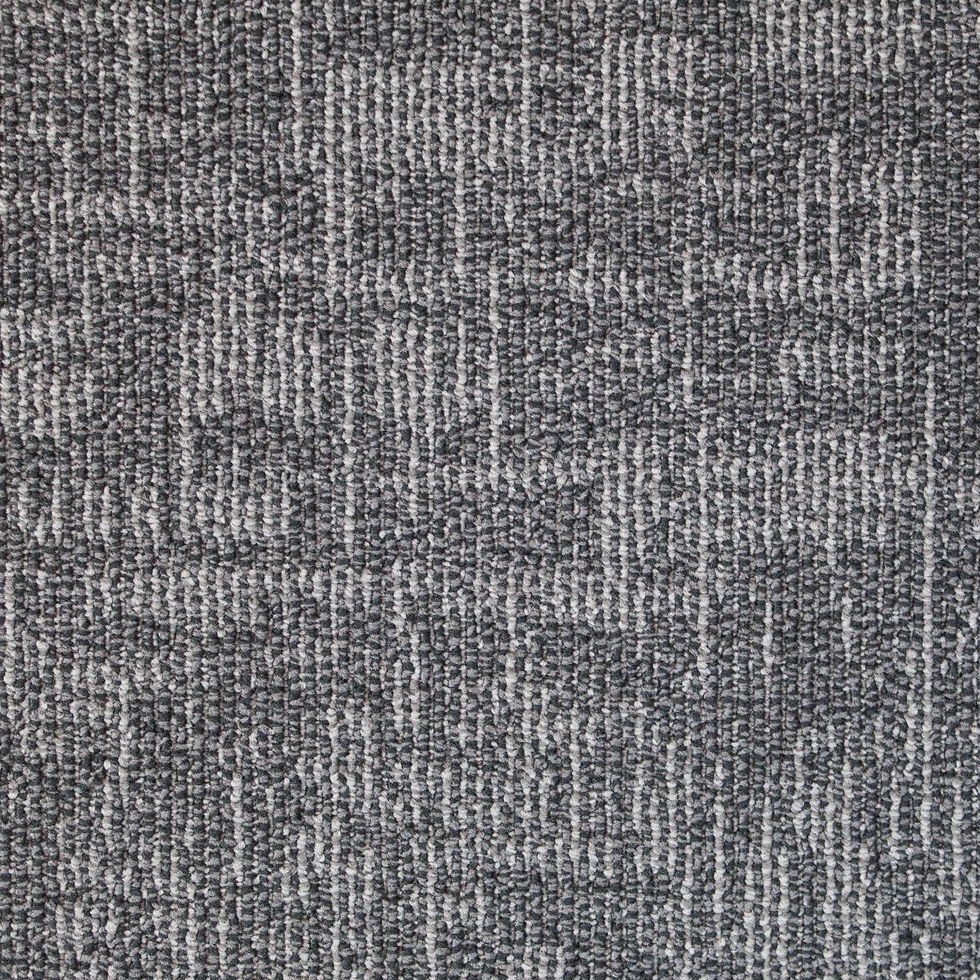

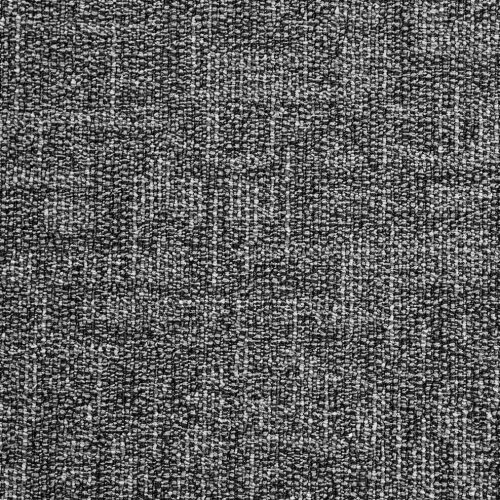

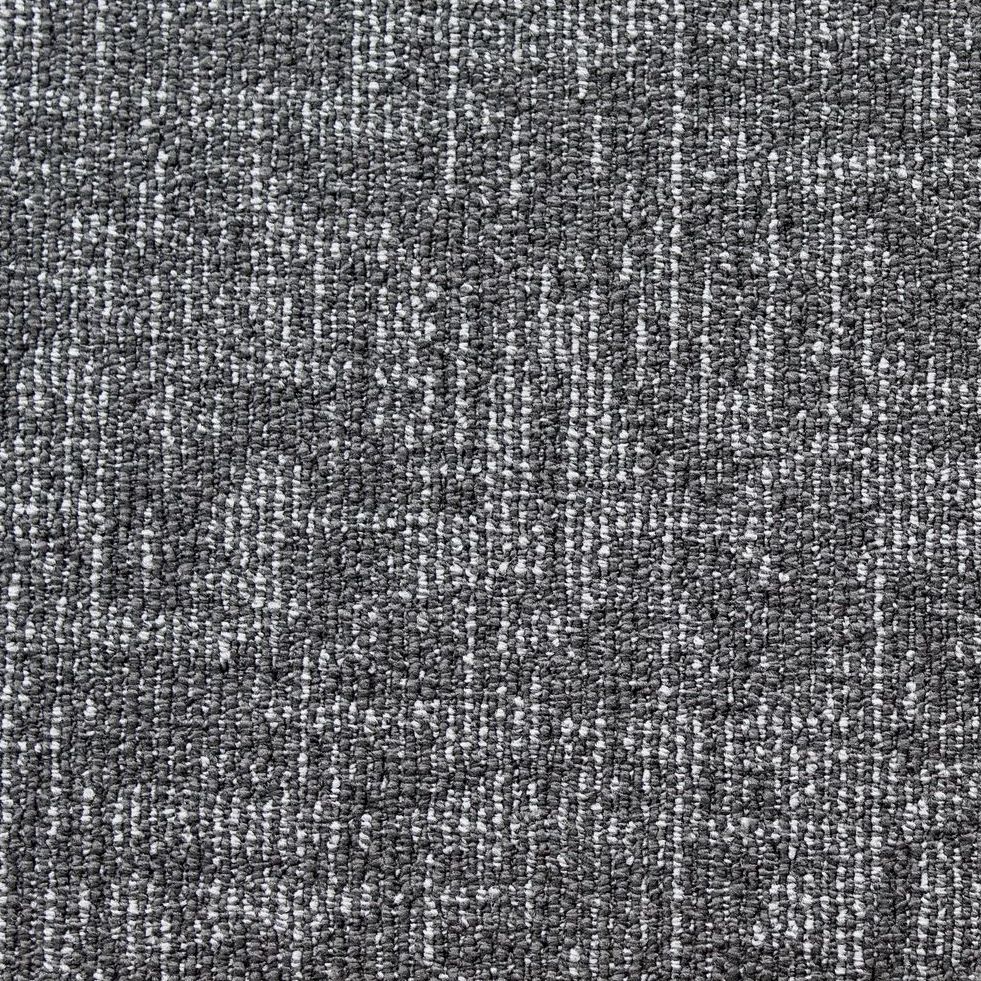

- Available in 8 popular colourways
- Cost-effective office, education, & contract solution
- 10-year heavy wear classification, class 33
- Highly durable & stylish design
Why Mesh?

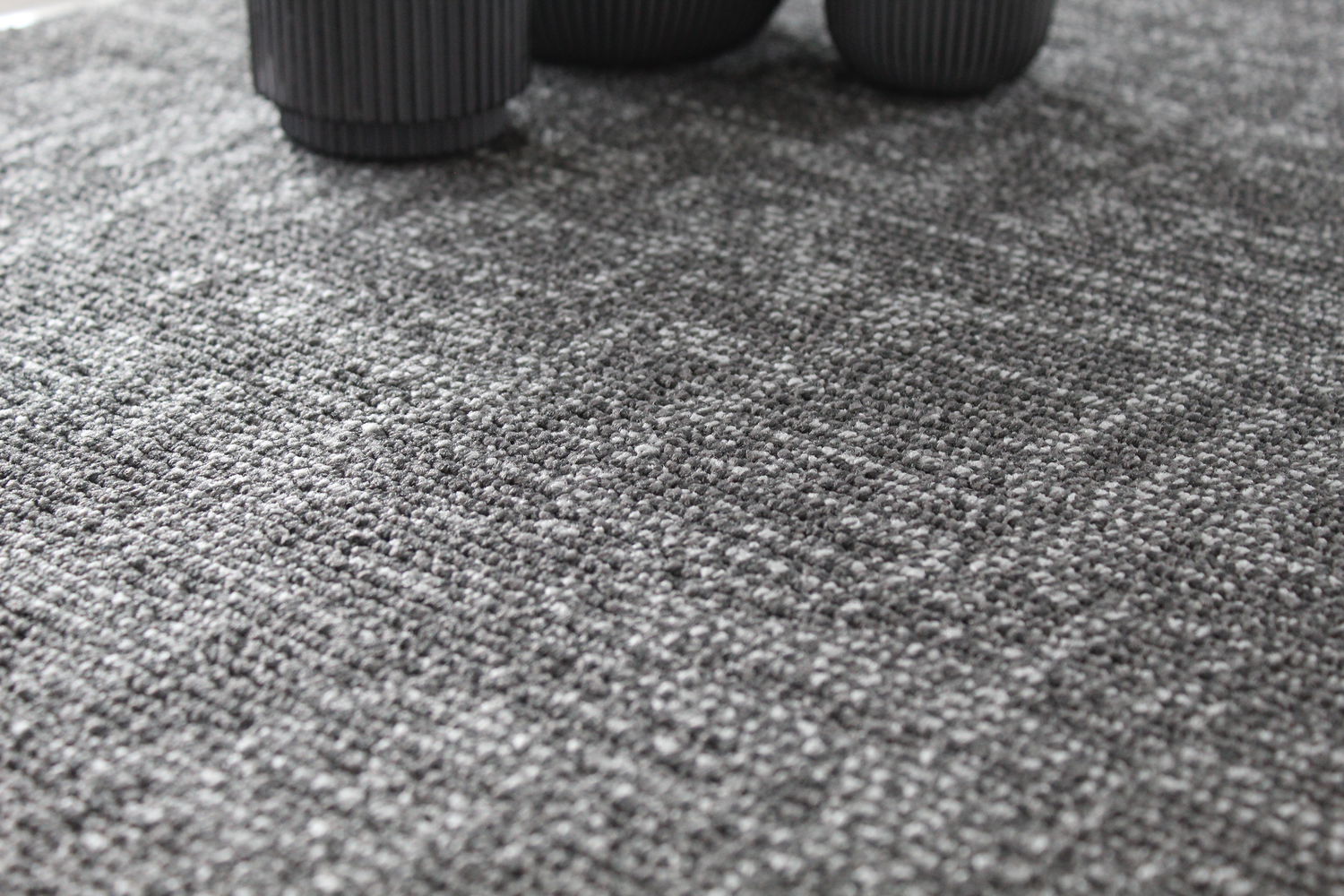

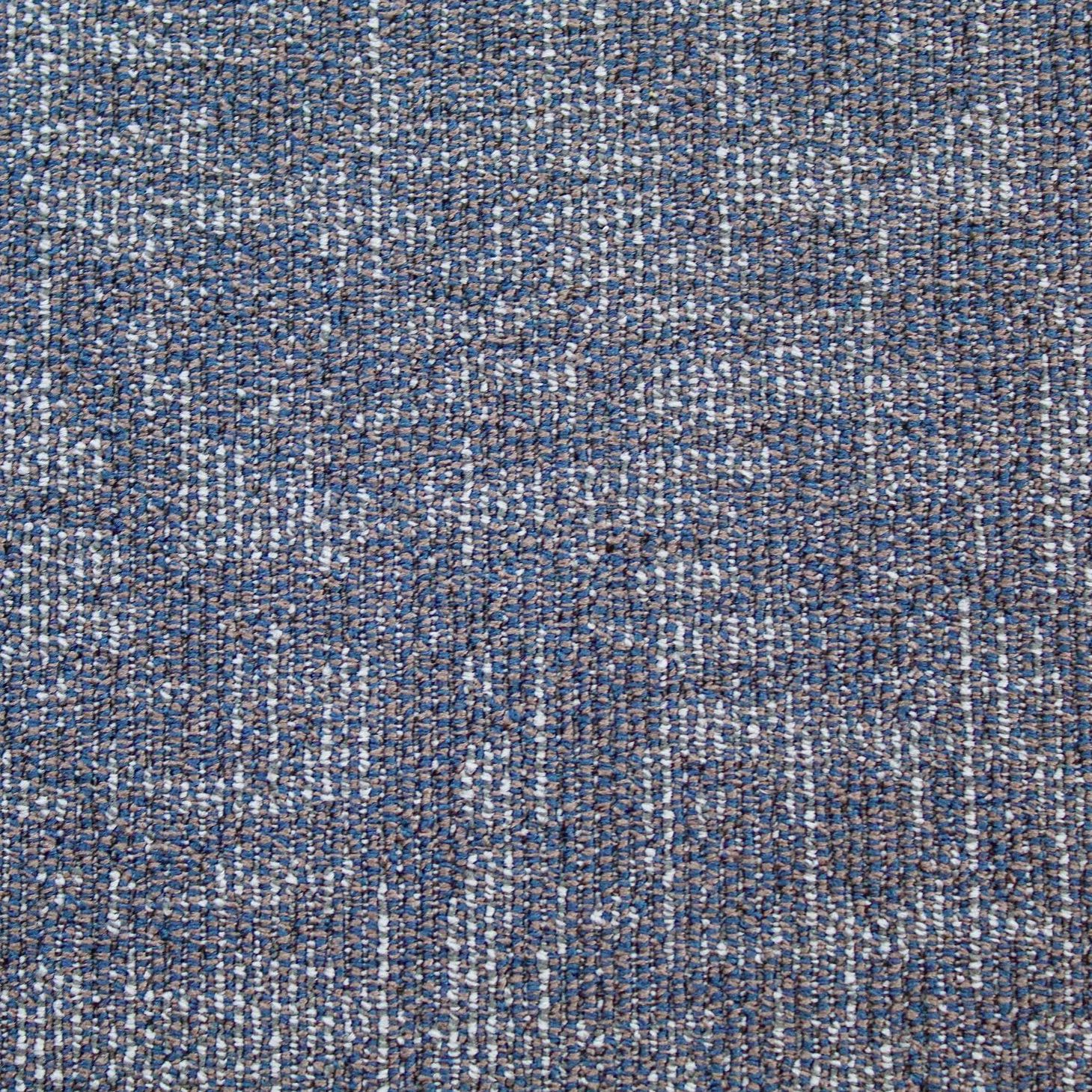

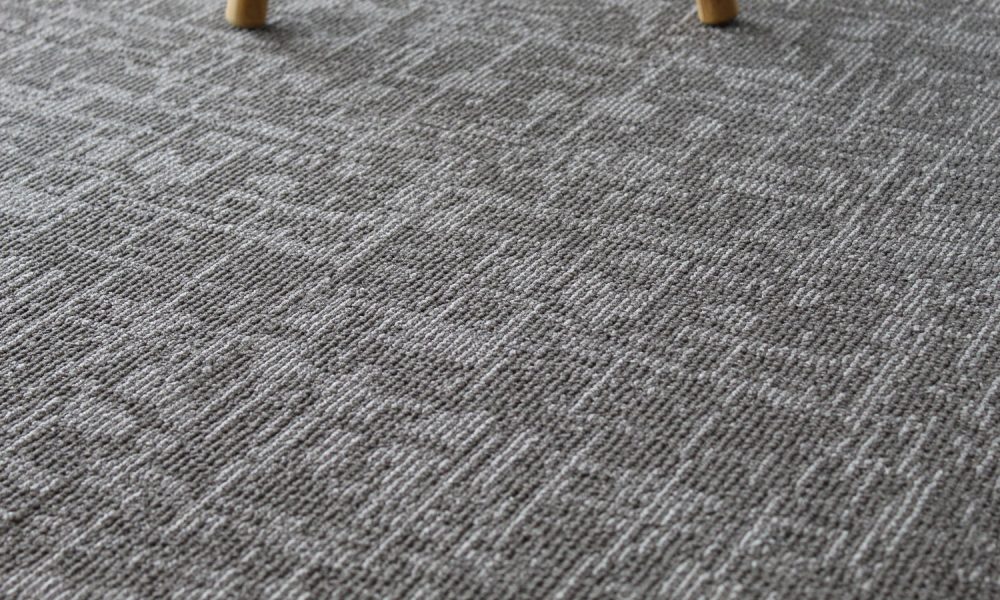

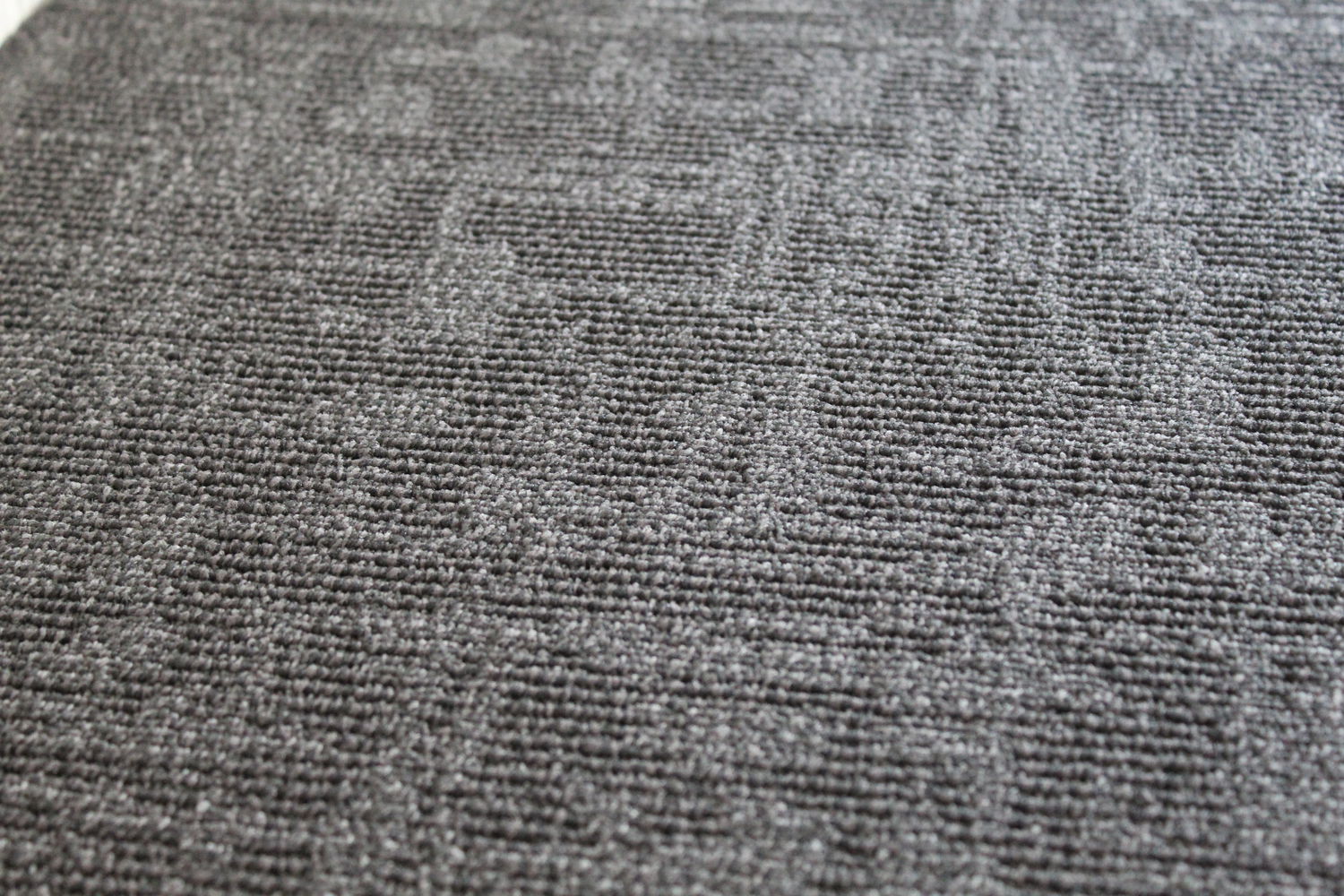

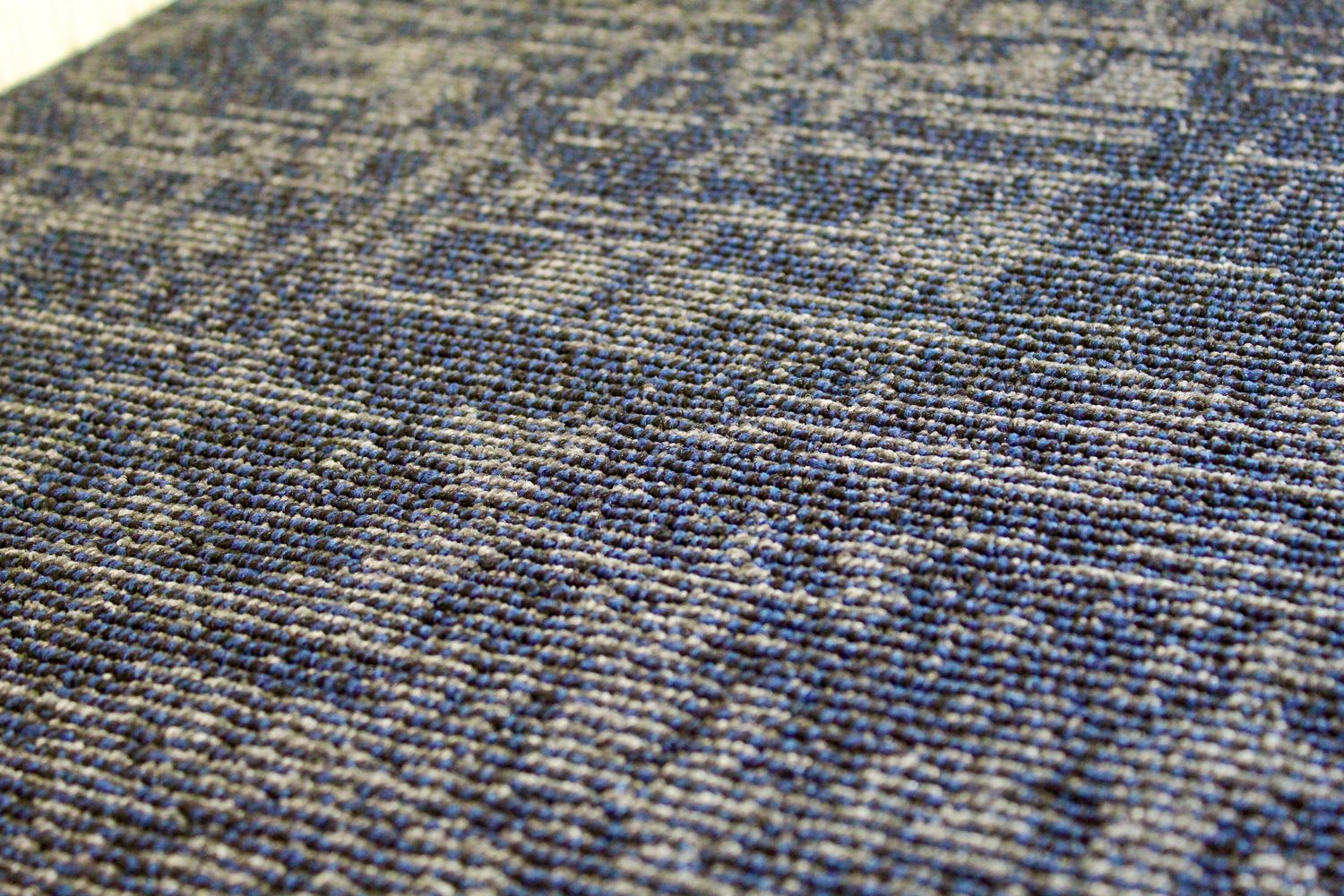

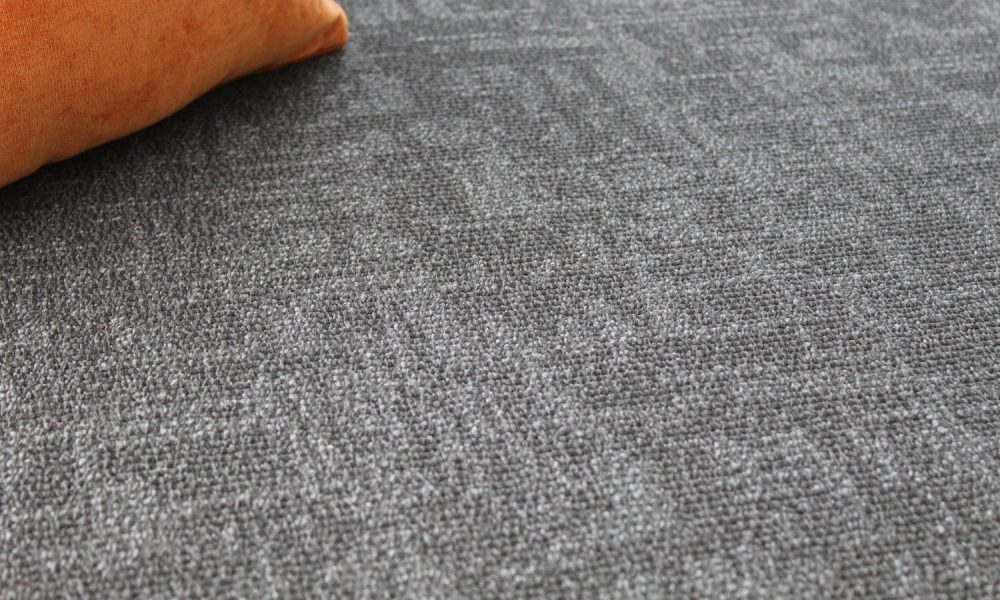

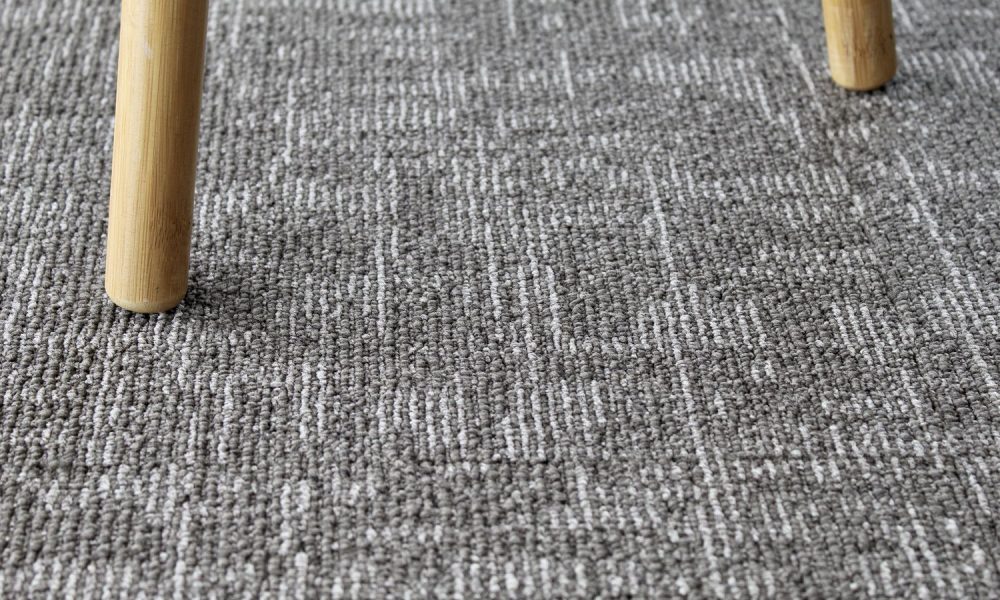

Unique to this collection is the distinctive and abstract Mesh design, which allows a standard ‘broadloom’ setting as well as a contrasting ‘brick fashion’ effect to delineate walkways or define adjoining areas.
The Mesh collection reaches its full potential in large open areas, where the distinctive design can be fully appreciated.
Whether it be Hotels, hospitality, banks, office reception areas, schools, or colleges, these are perfect places to make use of the specific effect of the Mesh collection, as it also has a 10-year heavy commercial wear warranty.
Its high resistance to fire and the effects of lights are also great additional characteristics in these large environments.
Specifications
| Product definition | Scroll loop pile |
| Gauge | 1/10″ |
| Pile fibre | 100% Solution dyed nylon PA6 |
| Pile weight ISO 8543 | 575 gr/m2 ± 7.5% |
| Pile height ISO 1766 | 2.5 mm ± 5% |
| Tile backing | Bitumen with fibreglass scrim |
| Total thickness ISO 1765 | 5.5 mm ± 5% |
| Total weight ISO 8543 | 3900 gr/m2 ± 7.5% |
| Tile size | 50 x 50 cm (25 x 100cm plank) |
| Use classification | 33 |
| Abrasion ISO 12951 | Pass |
| Dimensional stability EN 986 | Pass |
| Luxury/comfort EN 1307 | LC1 |
| Sound absorption ISO 140-8 | 25dB (31dB Acoustic Backing) |
| Reaction to fire EN ISO 11925-2 EN ISO 9239-1 | Bfl-s1 |

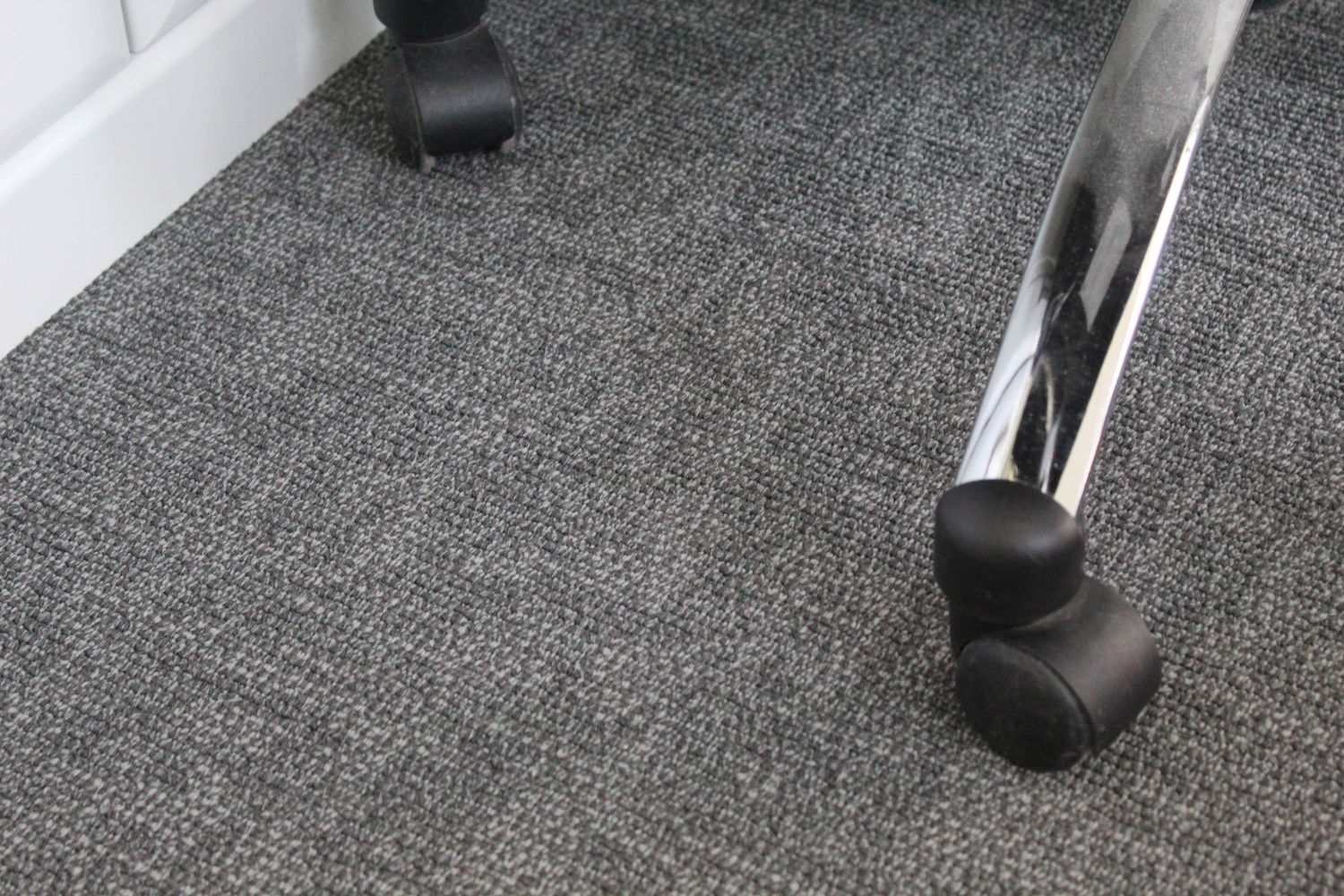

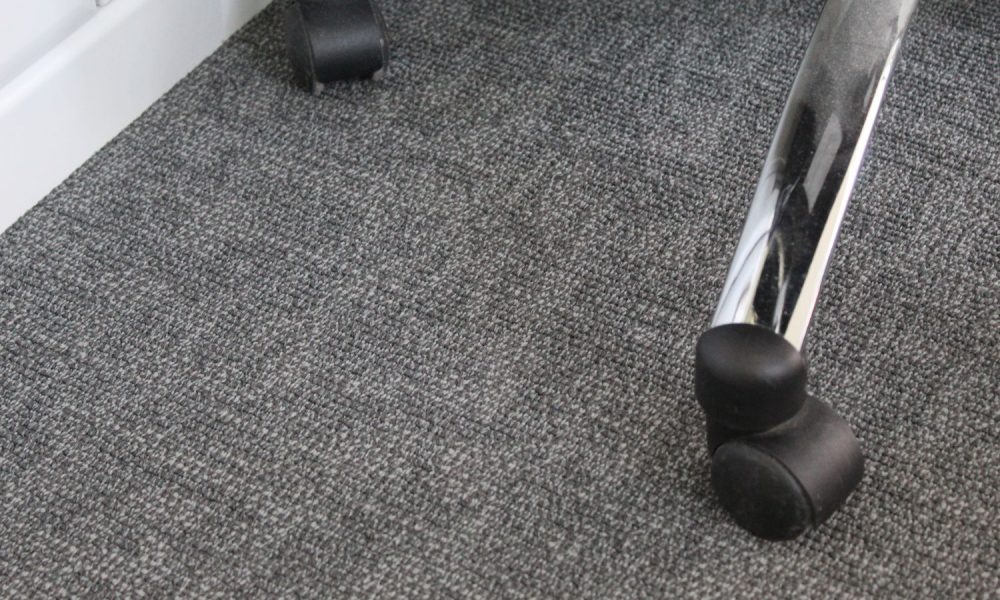

| Castor chair test EN 985 | A, continuous use |
| Tiles per box | 20 (5m2) |
| Wear warranty | 10 years heavy contract |
Carpet Tile Benefits
For the majority of projects, carpet tiles are a superior choice both practically and in terms of design.
One of the main reasons architects and designers, not to mention floor fitters , choose to work with carpet tiles is the ease with which they can be installed.
- Carpet tiles are easy to lift and transport, making it easier to get them on the job site undamaged, in the first place.
- Because they’re pre-backed, carpet tiles can be installed directly onto the subfloor, eliminating the need for underlays. This saves a lot of time and effort, not to mention money.
- Carpet tiles don’t always need to acclimatise or settle in place for 24 hours before they are laid.
- Less waste; carpet tiles generate minimal waste in the fitting stage. This is because very little cutting, or adjustment, is needed for tiles to fit a given space. This is particularly true of rooms with many nooks and odd angles.
- You can expect a waste of around 1-3 %. Less waste means less money spent, but is also attractive for clients concerned sustainability.
Product Comparisons
We are confident you will find Mesh equally compatible to many of our competitors in today’s market place.
Mesh carpet tiles are:
- Solution dyed nylon PA6
- Have a 10 year heavy contract wear warranty
- Has a class 33 wear classification
- Has a 25dB rating (31dB acoustic backing)
- Anti-static
- European manufactured
Mesh is comparable to:
- CFS Frameworx
- Paragon Inspiration
